SECURITY SYSTEMS

We offer specific and high-precision devices, which deliver accuracy in volumetric measurements, to optimise movement of manufacturing machinery and equipment.

mining-image
An example of our security system in work

  • LaseTVM-3D-M For Truck Volume Measurement (Motion)

    The application LaseTVM-3D-M (MOTION) is an accurate three-dimensional laser measurement system for the automated and dynamic measurement of truck load volumes on the fly without stopping. The application has a high versatility and can be used for volume and profile measurements of all different materials such as stones, sand, ore or even wood materials – also in rough environments. Two 2D laser scanners from the LASE 2000D-11x Series are used in combination with the LaseTVM-3D-M software application.

    scanner

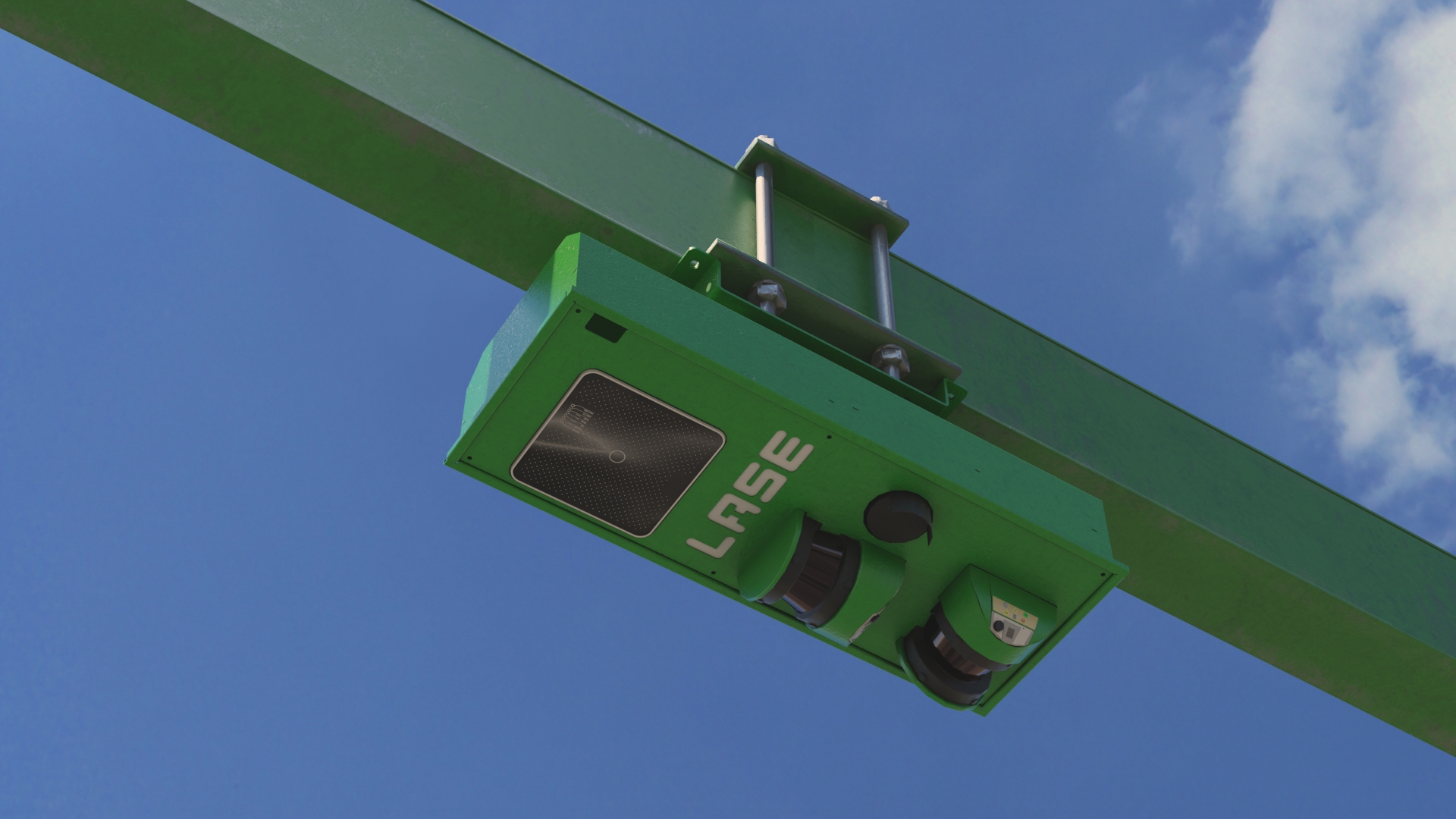

    The two 2D-laser scanners are mounted on the measuring frame

    scanner

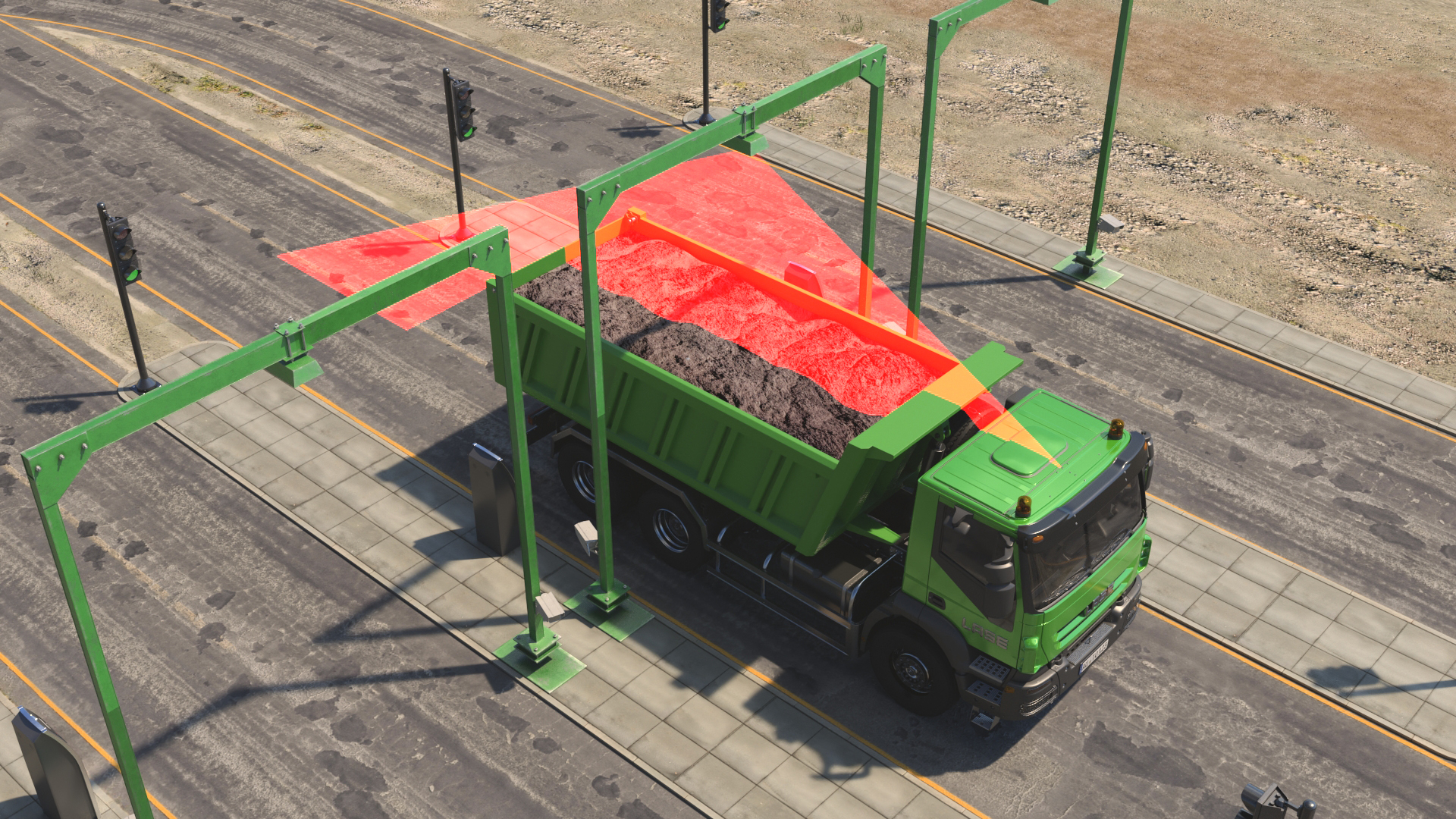

    The scan plane measuring truck payload before exit

  • LaseTVM-3D-S For Truck Volume Measurement (Static)

    The application LaseTVM-3D-S – Truck Volume Measurement Static is a highly precise three-dimensional measurement system especially developed for the measurement of truck loading volumes. 3D laser scanners from the LASE 3000D-C2-11x Series are used in combination with the LaseTVM-Software application.

    scanner

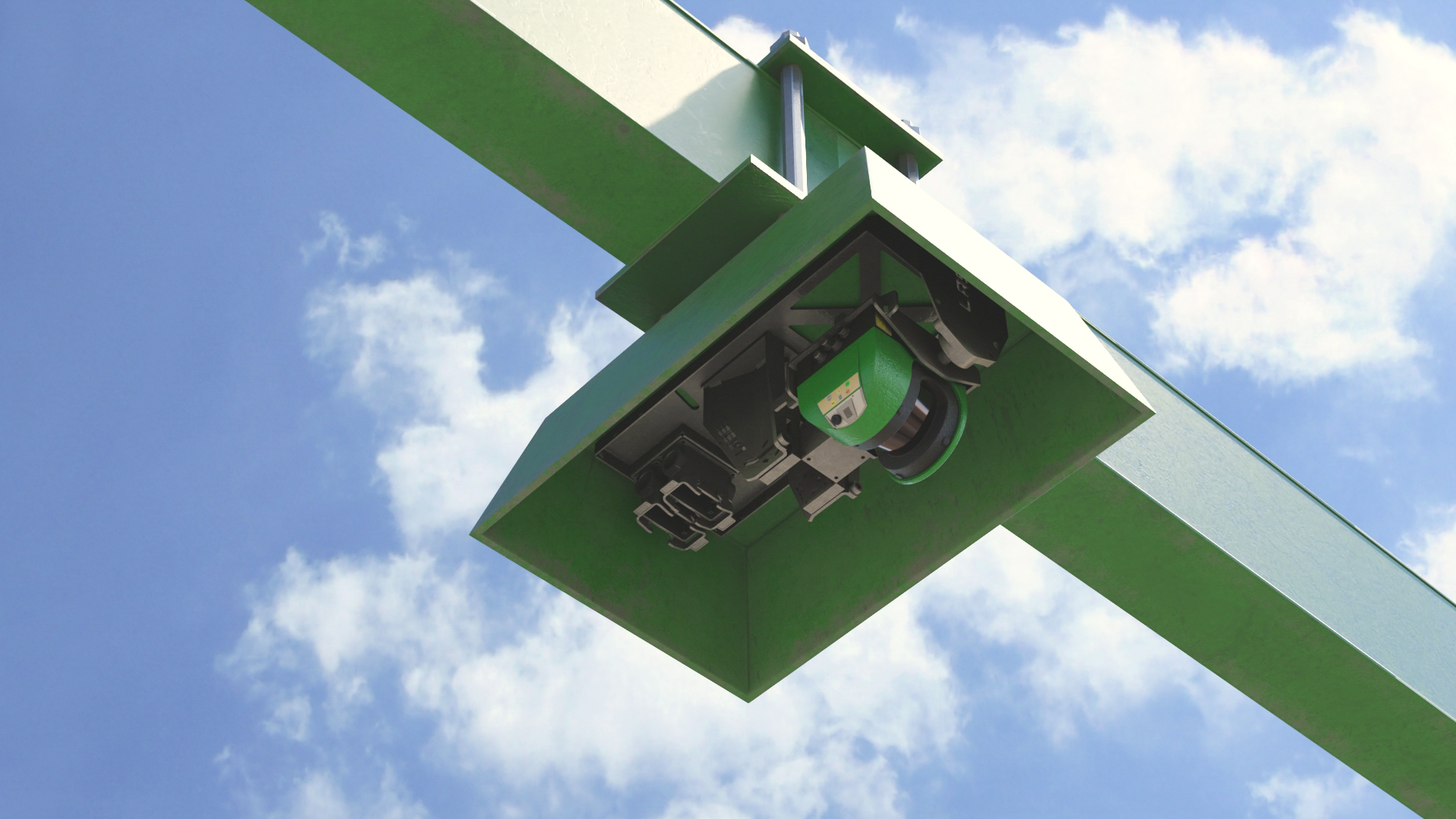

    3D-laser scanner mounted on measuring frame.

    scanner

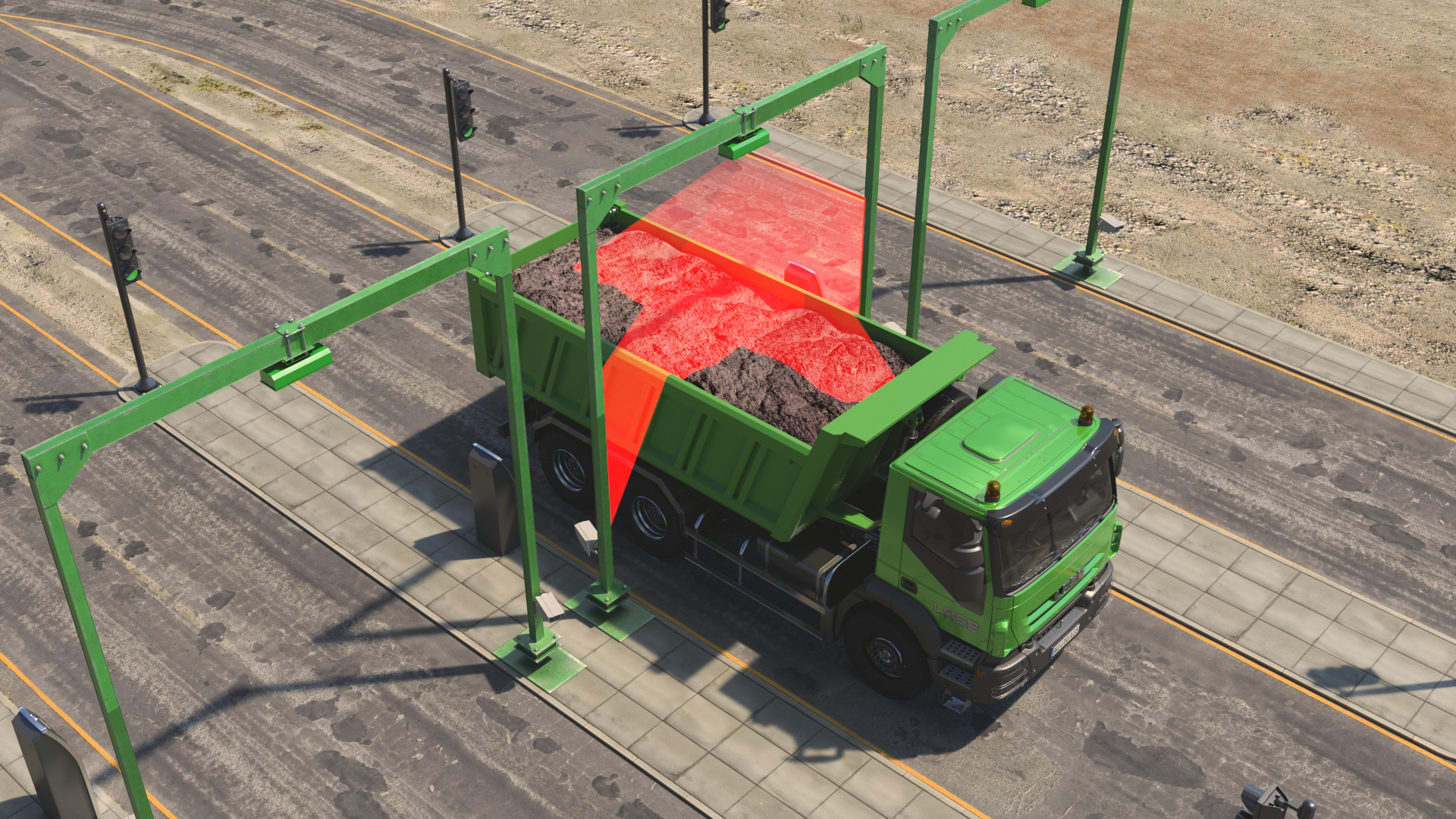

    The 3D-scan plane measuring truck payload before exit.

  • Mining Equipment Supplier – AVT Sarl

    scanner
    scanner

Products

  • Conveyor Volume Measurement systemsHigh-precision Laser based volume measurement systems, 3-D truck volume measurements which are used in conveyor belts , trucks, silos etc.

    Leading Brands Handled

    LASE

  • Tyre Cages We provide different sizes and models of tyre cages. Individually adaptations are possible, including colours. The distinct features include explosion-proof technology.

    Leading Brands Handled

    AVT

  • Fence ControllersThe fence controller systems are suitably designed, providing consistent performance and scalability to meet the specific requirements.

    Leading Brands Handled

    LASE

  • Motion Analysis EquipmentThis technology is based on high-precision Laser measurements, using 2D and 3 D Laser systems. The technology is software powered, based on determinations of pixels, movement and 3D for volume measurements. Special sensors are used as hardware to detect the motion, using locally installed Laser scanners.

    Leading Brands Handled

    LASE
